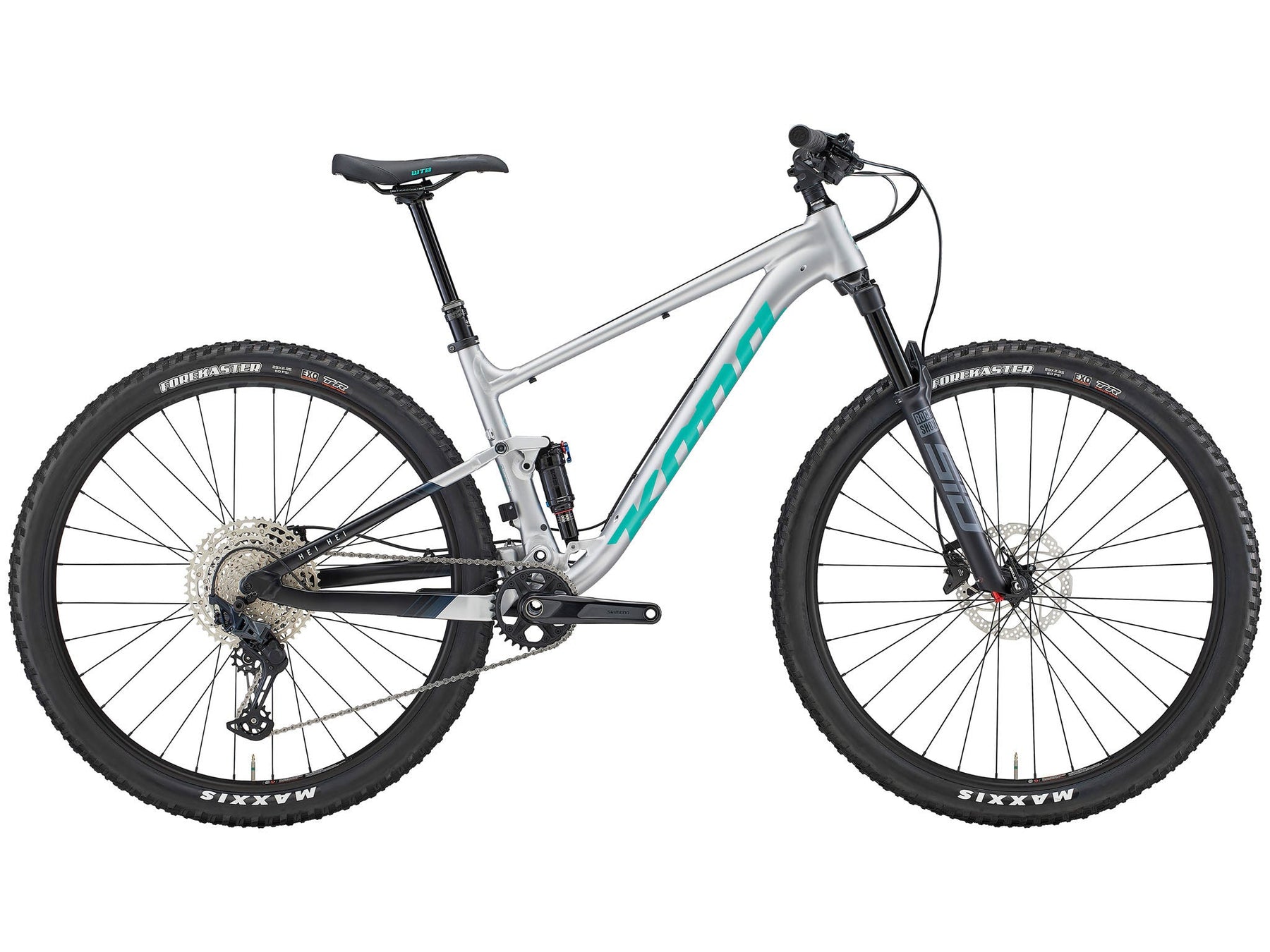

If we had to sum up the Hei Hei in one sentence it would be this: The Hei Hei is fast, fun, easy to ride, climbs like a mountain goat, descends like a cheetah, is affordable, has no frills but everything you need with its 120mm of front and 100mm of rear travel, and will ensure that you end every ride with a smile on your face. Run on sentences aside, the Hei Hei has been in our lineup for decades because it’s one of the best bikes we’ve ever made. It blurs the line between XC and trail bike and has proved that great ideas evolve into bikes with staying power.

SPECIFICATIONS
Frame Material Kona Race Light 6061 Aluminum Butted 100mm Travel
Sizes S, M, L, XL
Rear Shock RockShox Monarch RL Solo Air
Fork RockShox SID 35 DebonAir 120mm Tapered 110mm Spacing
Crankarms SRAM NX Eagle DUB
Chainrings 34t
B/B SRAM DUB PF92
Pedals n/a
Chain SRAM NX Eagle
Cassette SRAM PG1230 11-50t 12spd
Chainguide n/a
F/D n/a
R/D SRAM NX Eagle
Shifters SRAM NX Eagle
Brake Calipers SRAM Level T
Front Brake Rotor SRAM Centerline 180mm
Rear Brake Rotor SRAM Centerline 160mm
Brake Levers SRAM Level T
Headset FSA No.57B
Handlebar Kona XC/BC 35
Stem Kona XC/BC 35
Seatpost TranzX Dropper +RAD Internal 31.6mm
Seat Clamp Kona Clamp
Grips Kona Key Grip
Saddle WTB Volt
Front Hub Formula 110x15mm
Rear Hub Formula 148x12mm
Spokes Stainless Black
Rims WTB ST i27 TCS 2.0
Front Tire Maxxis Forekaster EXO TR DUAL 29x2.35"
Rear Tire Maxxis Forekaster EXO TR DUAL 29x2.35"
Paint Color Matte Faux Raw w/ Metallic Mint & Metallic Silver Decals
All specifications are subject to change without notice.
GEOMETRY
Size S M L XL
1 ST Length 370 420 470 530
2 TT Length 582 610 639 677
3 Reach 415 440 465 500
4 Stack 593 602 612 621
5 Standover 751 752 761 783
6 HT Angle 67.5 67.5 67.5 67.5
7 HT Length 95 105 115 125
8 ST Angle 74.2 74.2 74.2 74.1
9 CS Length 430 430 430 430
10 BB Drop 36 36 36 36
11 BB Height 339 339 339 339
12 Wheelbase 1129 1158 1187 1226
13 Front Center 702 731 759 798
14 Fork Length 526 526 526 526
15 Fork Offset 51 51 51 51
