RISE BEYOND
A machine designed to expand your trail experience and bring you closer to the moment. Rise brings you nearer the sensation that less "e" delivers more "bike". Whether you crave riding greater distances, reaching more epic locations, improving efficiency or increasing the frequency of your adventures, Rise beyond expectations and discover the new standard in MTB.
RANGE EXTENDER CAGE
The Range Extender cage is also compatible with standard water bottles, so you can optimize the battery/hydration configuration of every ride.
SWITCH & EW-EN100
The simplest configuration consists of a discreet rocker switch near the left brake lever to control assistance level and a small, inline junction box with two tiny LEDs that provides support mode info and smartly broadcasts wireless data.
IT'S THE MOST ADVANCED ALLOY FRAME
Using hydroforming process and triple-butted tubes, we've perfected the wall thickness to save weight and strengthen the stress-bearing zones.
The high polish finishes match the aesthetics of a carbon frame and increase the fatigue resistance on the welds.
RISE H HAS ITS OWN NEW 252WH RANGE EXTENDER THAT GIVES YOU NEARLY 800WH OF TOTAL CAPACITY
THIS IS THE LIGHTEST E-BIKE IN ITS CLASS
Meaning that no other aluminum ebike with this range and power delivery comes anywhere close. This is key, we wouldn't accept anything other than the same playful handling and natural pedaling that riders love with our Rise family.
THE SUPPORT PROVIDED BY THE PROGRESSIVE RATE ALONG WITH THE ANTI-SQUAT CHARACTERISTICS OF THE MAIN PIVOT PLACEMENT MEAN RISE IS AN EFFICIENT PEDALER THAT WON'T SAP YOUR ENERGY IN SUSTAINED EFFORTS
A high starting leverage rate gives a plush and active feel combined with terrific traction. A progressive curve controls the bike in full-travel situations - the inevitable big hits that come along with pointing a capable bike down a rocky trail.
LIGHTER AND SIMPLER
Saves the weight of complex yokes and additional pivot axles and hardware.
EASY HANGER REMOVAL
Allows the derailleur hanger to be replaced by hand in seconds.
STIFFER
Moving the pivot to the rear axle and using the rear thru-axle and rear hub creates a very solid interface.
Specs

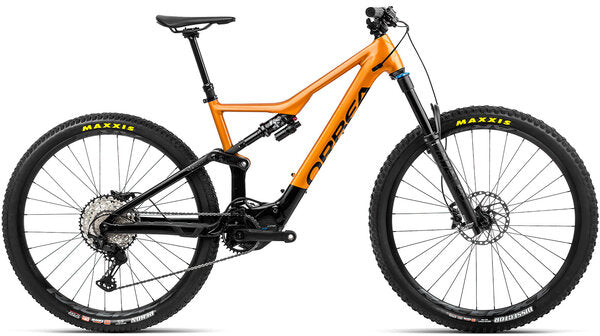

Frame Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148
Fork Fox 36 Float Performance 150 Grip 3-Position QR15x110
Wheels Race Face AR 30c Tubeless Ready
Tires Front: Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Rear: Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Crankset e*thirteen Plus Alu
Chainrings e*thirteen e*spec Direct Mount 32T Boost
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Rotors 180mm Front /180mm Rear
Handlebars Race Face Aeffect 35 20mm Rise 780mm
Stem Race Face Aeffect R 35mm interface
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC MC20 Mountain Control Dropper, 31,6mm
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Motor Shimano EP8-RS
Battery Orbea RS Internal 540Wh
Controller/Display Shimano SC-E7000
Charger Orbea Smart Charger (42V-4A)
